Site LINA

LINA

Isola di Linosa, Agrigento (ex LISA)

  • Id: 160
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 35.861264
  • Longitude [°]: 12.86433
  • Elevation [m]: 61
  • StartTime: 11/02/2013 10:26:52
  • EndTime:
  • Type: PERMANENT
  • Description: Isola di Linosa, Agrigento (ex LISA)
  • Site Name: LINA
  • Station Name: IV.LINA
  • Sensors: NANOMETRICS TRILLIUM-40S (m/s)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
No Data Available
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

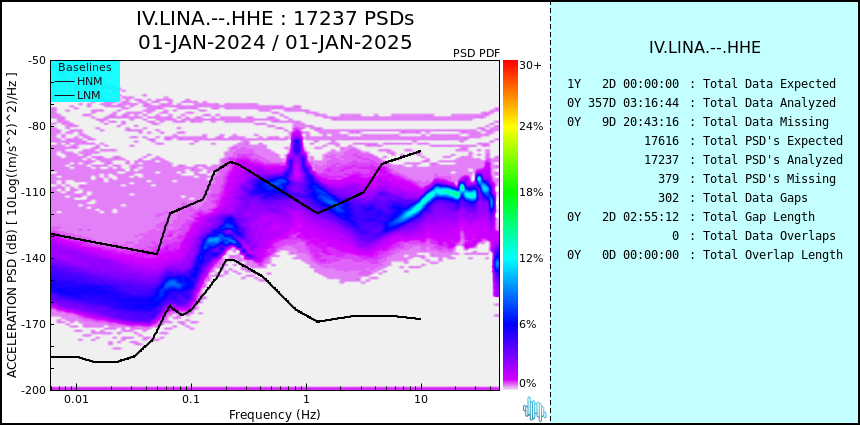

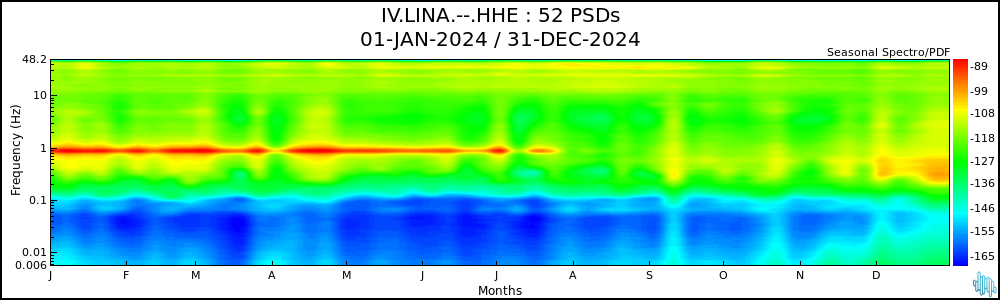

E HH Img Img 101

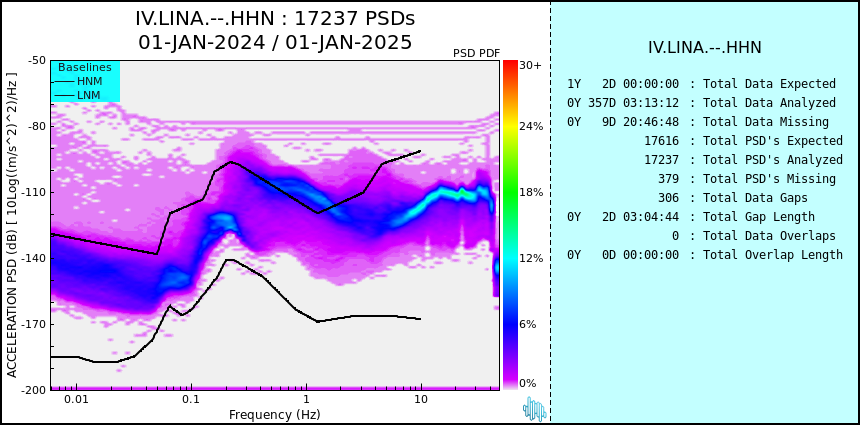

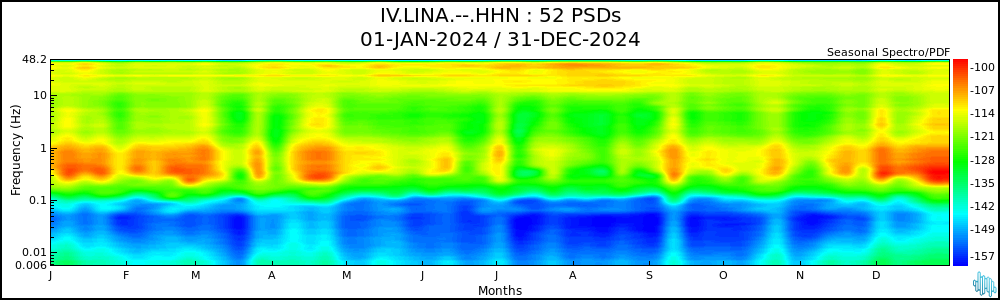

N HH Img Img 101

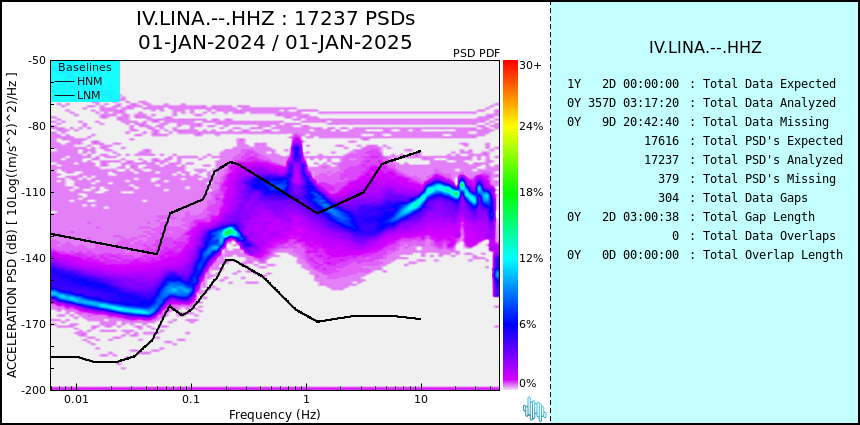

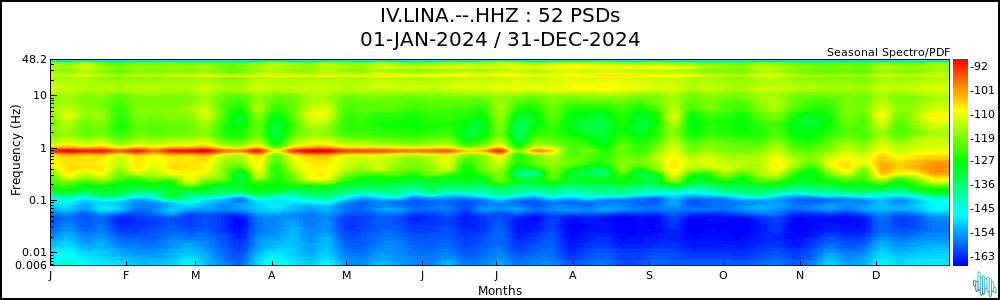

Z HH Img Img 101

Geology

Stratigraphy
No Data Available
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 2
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
Yes BASIN 10.00000 ANGLE_LE15 5.56000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio MAZARA DEL VALLO ISPRA 2010 B4 unconsolidated Mixed clay-sand-gravel terreni a granulometria mista (f+m+g) 2
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio MAZARA DEL VALLO INSPIRE dune marine_setting Holocene - Holocene sedimentary_layering deposition_from_water
Fault Classification
No Data Available
Landslide Classification
Cartography code Distance [m] Activity
Italian Landslide Inventory (IFFI) 756 ACTIVE
Cross Section
No Data Available

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 1 30
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2021 00:00:00 31/12/2021 00:00:00 RANDOM 0.1 15 HH Img 1
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
No Data Available

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 Yes Slope: 5.77°, Vs30: 624 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2025-01-27 11:46:26
DEM T1 Yes dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-07 16:55:10
Site Class
