Site LTRZ

LTRZ

Laterza, Taranto

  • Id: 165
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 40.60325
  • Longitude [°]: 16.8191
  • Elevation [m]: 342
  • StartTime: 01/03/2003 00:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Laterza, Taranto
  • Site Name: LTRZ
  • Station Name: IV.LTRZ
  • Sensor and digitizer: GURALP Certis-20S (m/s); KINEMETRICS EPISENSOR-FBA-ES-T-CL-2G-FS-40-VPP (m/s**2)
  • Q Final:
  • Q final monography:
  • Note:


Map Layer (100k and 50k from https://www.isprambiente.gov.it)

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img Img PILLAR NONE BOX 0
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

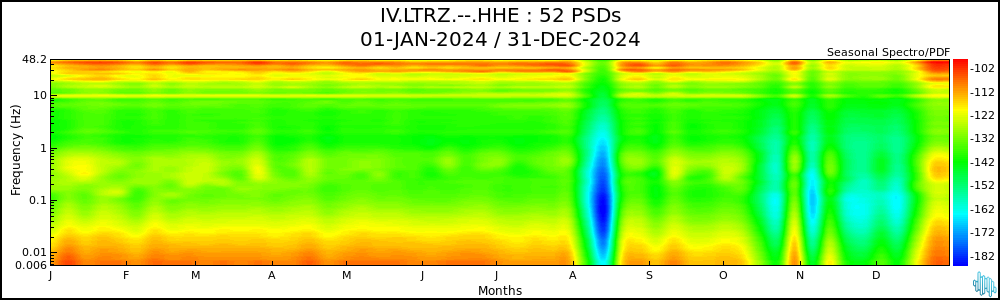

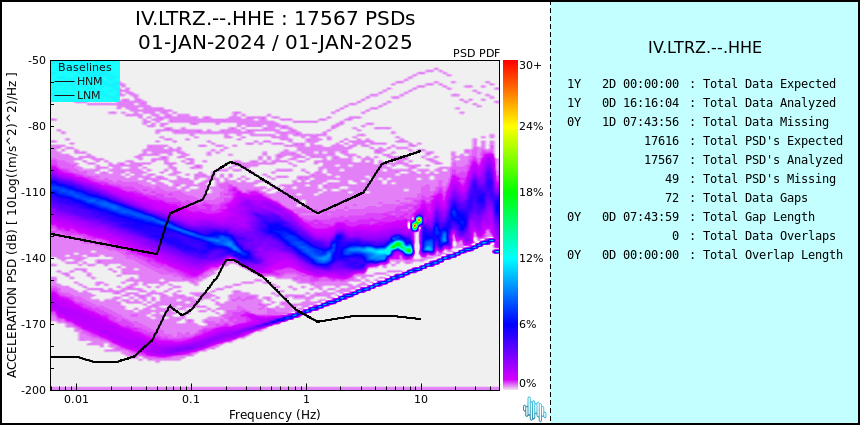

E EH Img Img 97

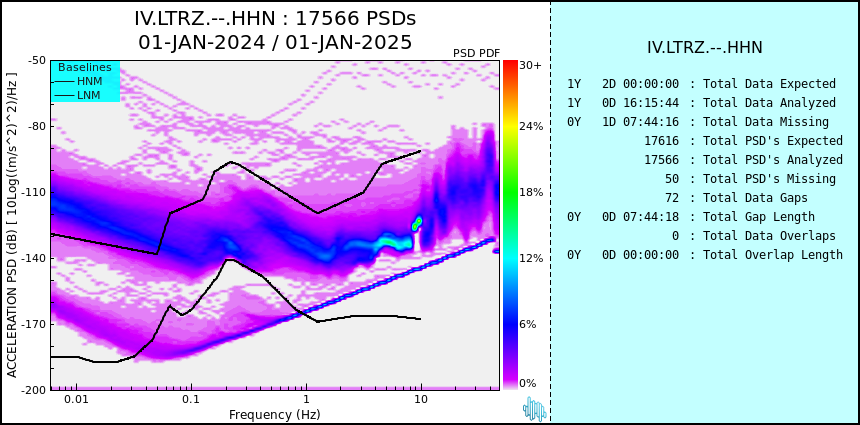

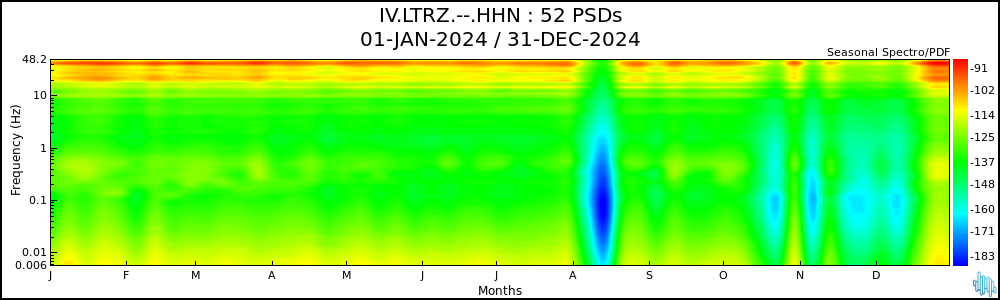

N EH Img Img 97

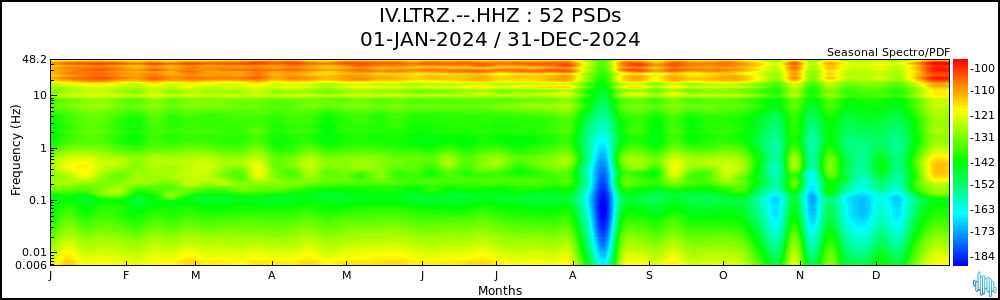

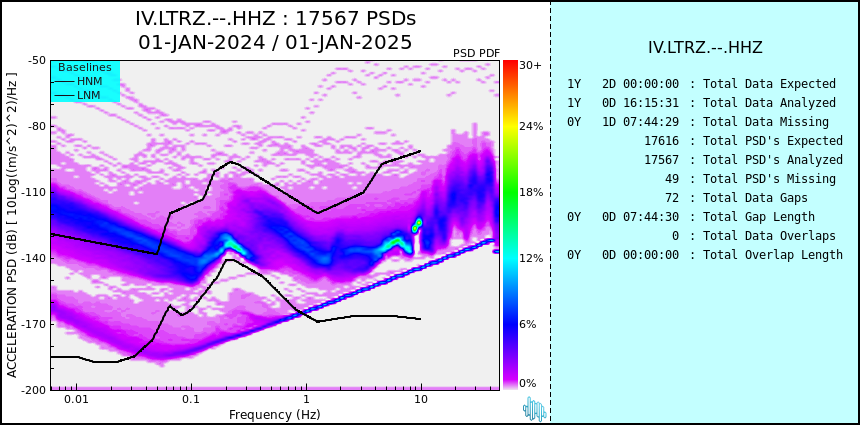

Z EH Img Img 97

Geology

Stratigraphy
No Data Available
Geological Review
Preferred Bibliography Monography Conceptual model strata
Yes Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 1
Morphological Classification
Preferred Type Note Dem Resolution [m] Slope Range Slope[°] Slope Range Figure
No RELIEF 30.00000 ANGLE_LE15 5.63000 Img
Yes BASIN 10.00000 ANGLE_LE15 5.40000 Img
Lithological Classification
Preferred Cartography Title Coding type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio MATERA ISPRA 2010 A8 well_indurated Conglomerate conglomerati, brecce, puddinghe 2
Geological Classification
Preferred Cartography Title Coding type Geological units Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio MATERA INSPIRE conglomerato di tempa s. lorenzo terrestrial_setting Pliocene - Pliocene sedimentary_layering deposition_from_moving_fluid
Fault Classification
No Data Available
Landslide Classification
Cartography Title: Distance [m] Activity
Italian Landslide Inventory (IFFI) 397 ACTIVE
Cross Section
No Data Available

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 0 42
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 01/01/2021 00:00:00 05/03/2014 00:00:00 0.1 15 HH Img 0
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
No Data Available

Site Classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 Yes Slope: 0.92°, Vs30: 350 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2025-01-27 11:50:54
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-19 16:35:00
DEM T1 No dem_30m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-07 17:01:16
OTHER T1 No GoogleEarth EC8 2022-02-07 17:01:29
Site Class
Site Class Type Site Class Value Preferred Site Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B Yes Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-26 13:06:07
GEOLOGY B Yes Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-08-10 17:01:24
GEOLOGY B No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
GEOLOGY B No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-15 12:32:17
