Site MCRV

MCRV

Calabritto - Mt. Cervialto, Avellino

  • Id: 173
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 40.782643
  • Longitude [°]: 15.168082
  • Elevation [m]: 1124
  • StartTime: 10/07/2005 10:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Calabritto - Mt. Cervialto, Avellino
  • Site Name: MCRV
  • Station Name: IV.MCRV
  • Sensors: NANOMETRICS TRILLIUM-40S (m/s); KINEMETRICS EPISENSOR (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img Img PILLAR GOOD VAULT 0
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

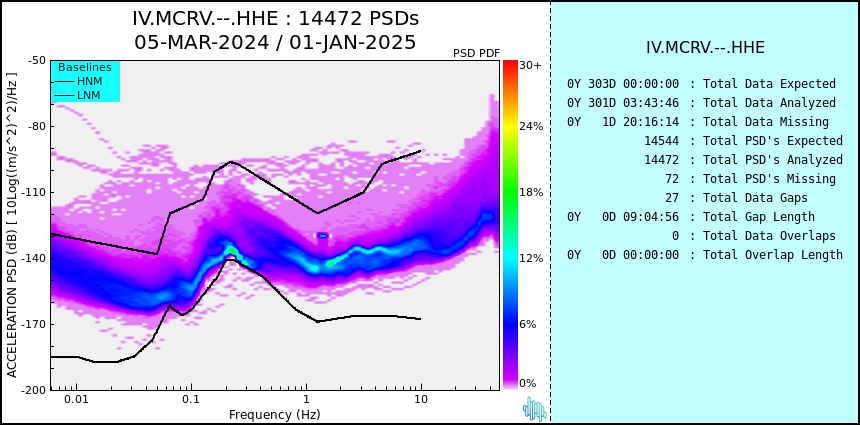

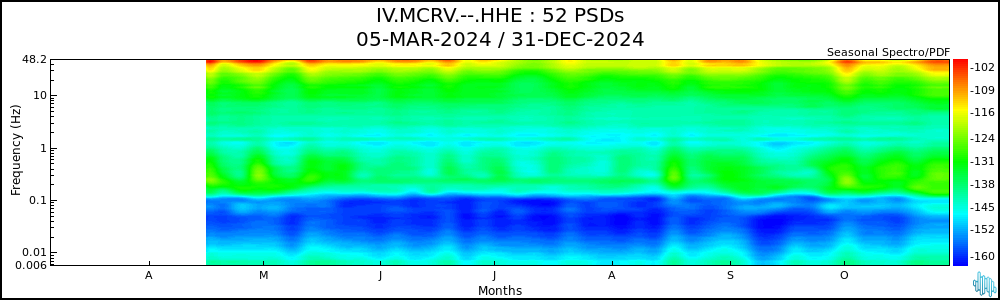

E HH Img Img 101

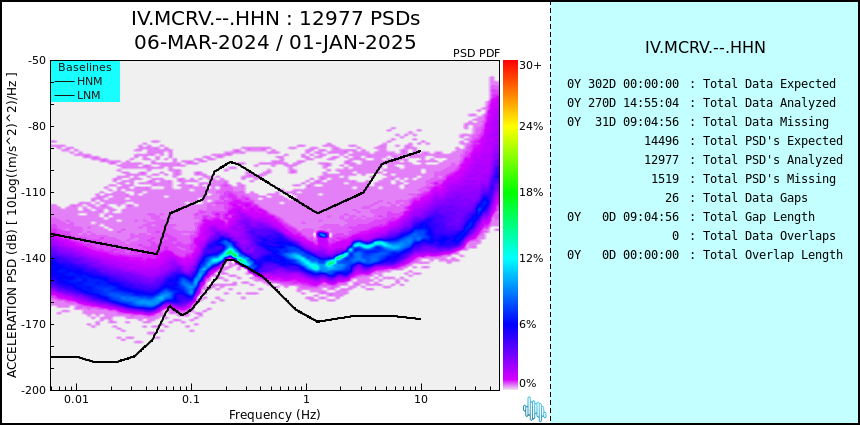

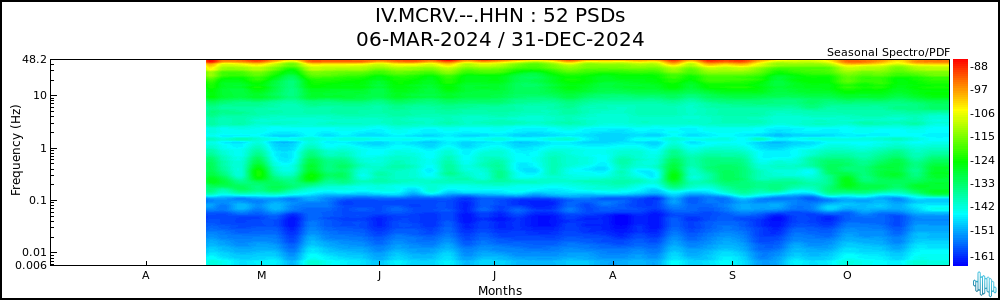

N HH Img Img 101

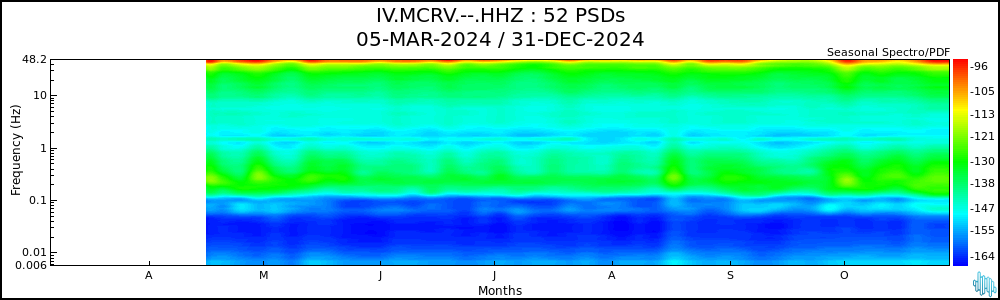

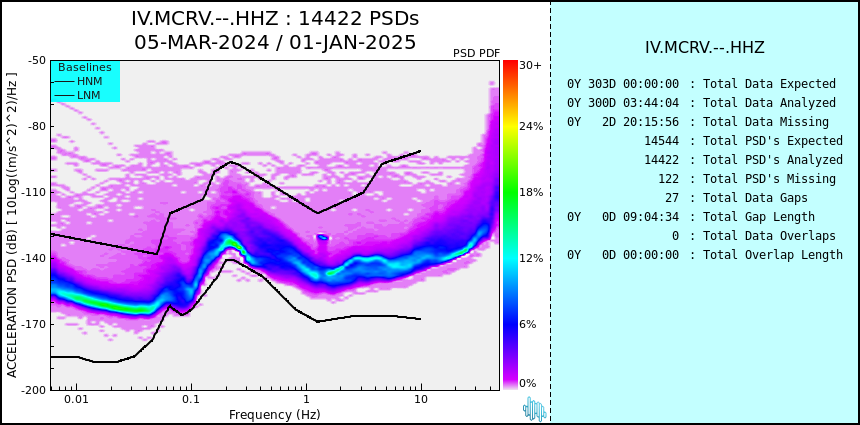

Z HH Img Img 101

Geology

Stratigraphy
No Data Available
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 2
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
Yes RELIEF 10.00000 ANGLE_LE15 7.11000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio S.ANGELO DEI LOMBARDI ISPRA 2010 A1 consolidated Limestone calcilutiti, calcareniti,calciruditi; calcari dolomitici, calcari selciferi, 1
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio S.ANGELO DEI LOMBARDI INSPIRE Calcari detritici bioclastici marine_setting Cenomanian - Maastrichtian parallel_bedding deposition_from_water
Fault Classification
No Data Available
Landslide Classification
Cartography code Distance [m] Activity
Italian Landslide Inventory (IFFI)
Cross Section
No Data Available

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 2 62
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 26/02/2015 00:00:00 26/02/2015 04:00:00 NONE 0.1 15 HH Img Img 1
SSREQ
No Data Available
Signal Polarization
Preferred Type Start time End time Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture ellipticity Picture dip Picture strike Number of peaks Number of earthquake
Yes Noise 23/12/2015 04:00:00 26/02/2015 04:00:00 0.1 20 HH Img Img Img 1 0

Geophysics

Subsoil Model
No Data Available

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T4 Yes Slope: 18.04°, Vs30: 1028 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2025-01-27 11:59:16
OTHER T2 No googlEarth_10m EC8 2024-02-19 16:47:46
DEM NC No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-07 17:15:34
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B Yes Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-26 13:07:38
GEOLOGY E Yes Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-08-10 16:58:46
GEOLOGY A No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
GEOLOGY B No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-15 12:18:34
