Site POFI

POFI

Posta Fibreno, Frosinone

  • Id: 250
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 41.71743
  • Longitude [°]: 13.71202
  • Elevation [m]: 784
  • StartTime: 28/03/2007 15:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Posta Fibreno, Frosinone
  • Site Name: POFI
  • Station Name: IV.POFI
  • Sensors: NANOMETRICS TRILLIUM-40S (m/s); KINEMETRICS EPISENSOR-FBA-ES-T-CL-2G-FS-40-VPP (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
Picture Sensor Picture Site Picture Panorama Coupling Insulating Housing Note Noise source
Img Img PILLAR NONE VAULT 0
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

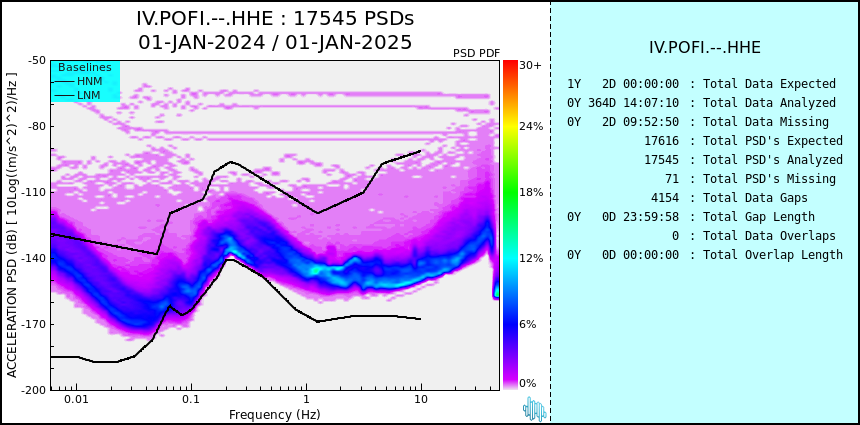

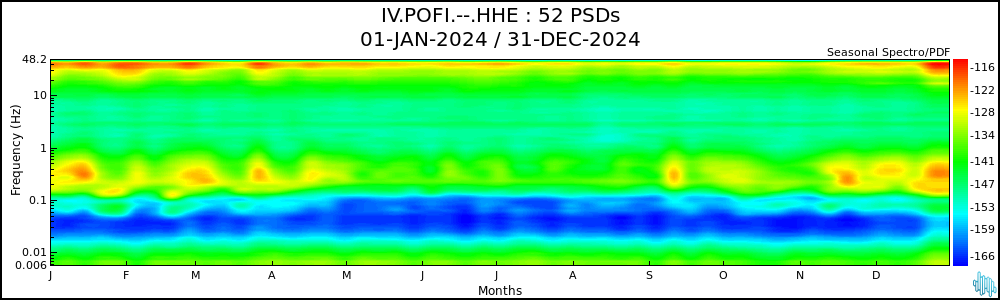

E HH Img Img 101

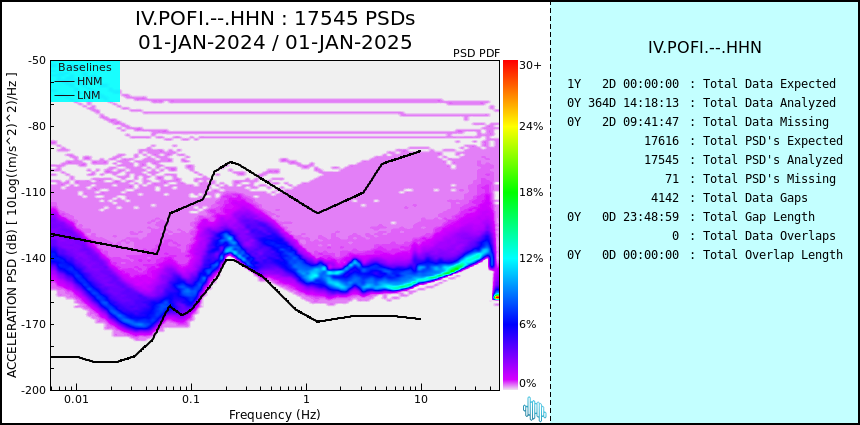

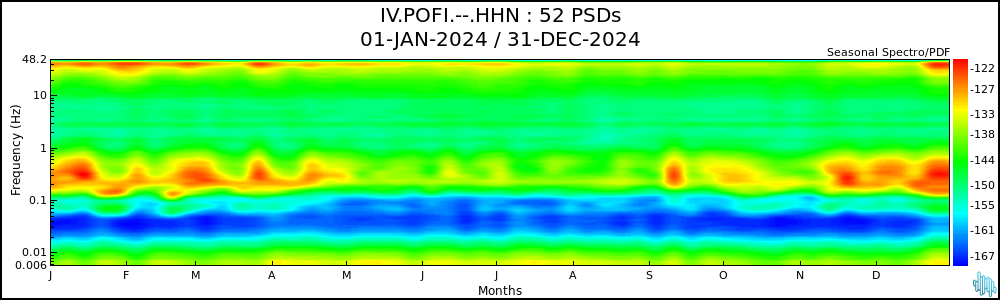

N HH Img Img 101

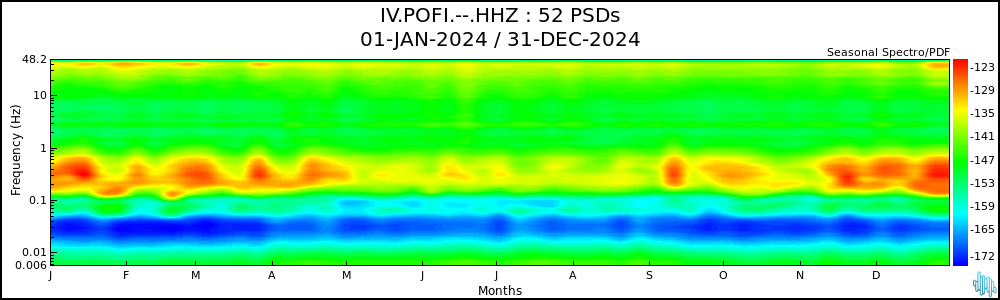

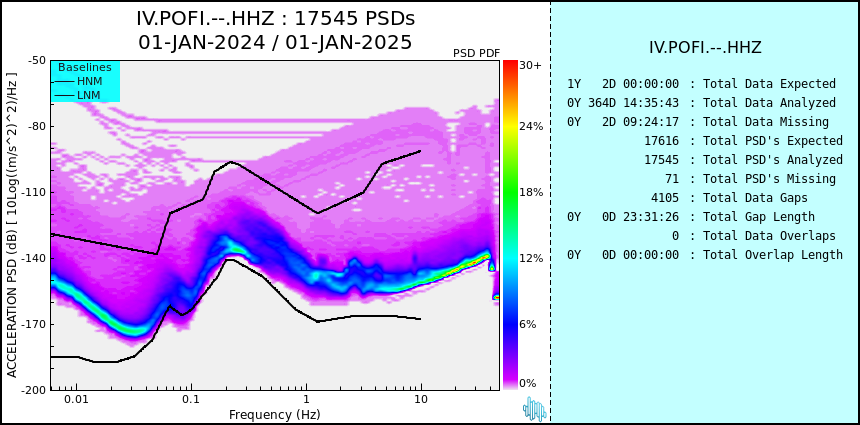

Z HH Img Img 101

Geology

Stratigraphy
No Data Available
Geological Review
Preferred Bibliography Monography Conceptual Model Value
Yes Falcucci M., Maceroni D., Dixit Dominus G., , Vassallo M., Di Giulio G., De Luca G., Site characterization report at the seismic station IV.POFI – Posta Fibreno (FR), Working group INGV "Agreement DPC-INGV 2019-21, All.B2- WP1, Task 2” (2021)
download 0
No Monti G. M., Martarelli L., Gafà R. M., Olivetta L., Caratterizzazione geolitologica dei siti su cui ricadono le stazioni della Rete Sismica Nazionale dell’INGV, INGV- ISPRA 2016-17 Agreement (protocol INGV 2016/0003777 of 04/04/2016): "Scientific and technical collaboration aimed at the geolithological characterization of the sites of the stations of the national INGV seismic network "(Scientific Coordinators: P. Bordoni and G.M. Monti) (2016)
download 3
Morphological classification
Preferred Type Note Dem Resolution [m] Slope Range Slope [°] Slope Range Figure
No RELIEF 30.00000 ANGLE_LE15 2.14000 Img
Yes RELIEF 10.00000 ANGLE_LE15 5.29000 Img
Lithological Classification
Preferred Cartography Code Coding Type Lithological Unit Code Volumetric Joint Count Consolidation Degree Lithologic Class Lithologic Description Number Of Lithology Subdivision
Yes Foglio Carta Litologica d’Italia 1:100,000 - Foglio SORA ISPRA 2010 A1 well_indurated Limestone calcilutiti, calcareniti,calciruditi; calcari dolomitici, calcari selciferi, 2
Geological Classification
Preferred Cartography code Coding type Geological unit extended name Environmental settings Age (Older - Younger) Rock mass structure Event Process
Yes Foglio Carta Geolitologica d'Italia 1:100,000 - Foglio SORA INSPIRE calcari nocciola marine_setting Aptian - Cenomanian parallel_bedding deposition_from_water
Fault Classification
No Data Available
Landslide Classification
Cartography code Distance [m] Activity
Italian Landslide Inventory (IFFI) 626 NO_INFORMATION
Cross Section
Cartography Geological
Cross Section 		Latitude 1 [°] Longitude 1 [°] Latitude 2 [°] Longitude 2 [°] Spatial Ref Sys
Foglio SAN DONATO VAL DI COMINO - Carta Geologica d’Italia 1:50,000 Img 41.71411 13.70665 41.72067 13.71532 GCS_WGS_1984

Seismology

HVEQ
Preferred Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks Number of earthquake
Yes 0.5 15 HH Img 0 89
HVNoise
Preferred Start time End time Noise variability types Frequency range min [Hz] Frequency range max [Hz] Band Instrument Picture of rotated ratio Picture of ratio Number of peaks
Yes 24/10/2015 00:00:00 24/10/2015 23:59:59 0.1 15 HH Img Img 0
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
Id Type Investigation Pref. Latitude [°] Longitude [°] Elevation [m] Figure Monography
63 VELOCITY_PROFILE MASW YES 41.71743 13.71202 784 Img Img

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T3 Yes Slope: 2.2°, Vs30: 443 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2025-02-05 14:45:28
DEM T1 No dem_10m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2024-02-22 08:43:17
DEM T1 No dem_30m EC8 V. Pessina and E. Fiorini, A GIS procedure for fast topographic characterization of seismic recording stations, Soil Dynamics and Earthquake Engineering, (2014)
2022-02-09 13:41:29
OTHER T1 No GoogleEarth EC8 2022-02-09 13:41:42
Site Class
Soil Class Type Soil Class Value Soil Class Preferred Soil Class Note Seismic Code Type Bibliography Last Update
GEOLOGY B No Obtained by dataset (ASCII file GR ID) https://data.mendeley.com/datasets/8458tgzc73/1 EC8 Mori F., Mendicelli A., Moscatelli M., Romagnoli G., Peronace E., Naso G., A new Vs30 map for Italy based on the seismic microzonation dataset, Engineering Geology, (2020)
2023-05-18 08:26:15
GEOLOGY E No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip NTC18 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:56
GEOLOGY A No Obtained by Standalone Software SSC-Italy http://wpage.unina.it/iuniervo/SSC-Italy.zip EC8 Forte G., Chioccarelli E., De Falco M., Cito P., Santo A., Iervolino I., Seismic soil classification of Italy based on surface geology and shear-wave velocity measurements, Soil Dynamics and Earthquake Engineering, (2019)
2023-05-18 08:25:18
MASW B Yes Vseq=699.8 m/s NTC18 Falcucci M., Maceroni D., Dixit Dominus G., , Vassallo M., Di Giulio G., De Luca G., Site characterization report at the seismic station IV.POFI – Posta Fibreno (FR), Working group INGV "Agreement DPC-INGV 2019-21, All.B2- WP1, Task 2” (2021)
2022-02-15 10:12:34
MASW A Yes Vs30=1280.5 m/s EC8 Falcucci M., Maceroni D., Dixit Dominus G., , Vassallo M., Di Giulio G., De Luca G., Site characterization report at the seismic station IV.POFI – Posta Fibreno (FR), Working group INGV "Agreement DPC-INGV 2019-21, All.B2- WP1, Task 2” (2021)
2023-05-29 08:23:44
GEOLOGY A No from di Capua et al. 2016 EC8 Di Capua G., Peppoloni S., Amanti M., Cipolloni C., Conte G., Site classification map of Italy based on surface geology, Geological Society, London, Engineering Geology Special Publications, (2016)
2022-02-15 10:12:36
