Site MML1

MML1

Madonna di Montelago, Macerata

  • Id: 430
  • Spatial Reference System: GCS_WGS_1984
  • Latitude [°]: 43.113538
  • Longitude [°]: 12.971936
  • Elevation [m]: 939
  • StartTime: 10/04/2018 11:00:00
  • EndTime:
  • Type: PERMANENT
  • Description: Madonna di Montelago, Macerata
  • Site Name: MML1
  • Station Name: IV.MML1
  • Sensors: sensor_Lennartz_LE-3D-5s_LP5_SG400_STgroundVel (m/s); sensor_Kinemetrics_Episensor-ES-T_CG2g_FV20Vp_OWDifferential_HF200_SG1.0197_STgroundAccel (m/s**2)
  • Q Final:
  • Allegato:
  • Note:

Map Layers

Housing

Instrument Housing
No Data Available
Data Quality
Component Band Instrument Seasonal noise figure Annual noise figure Data Quality Values

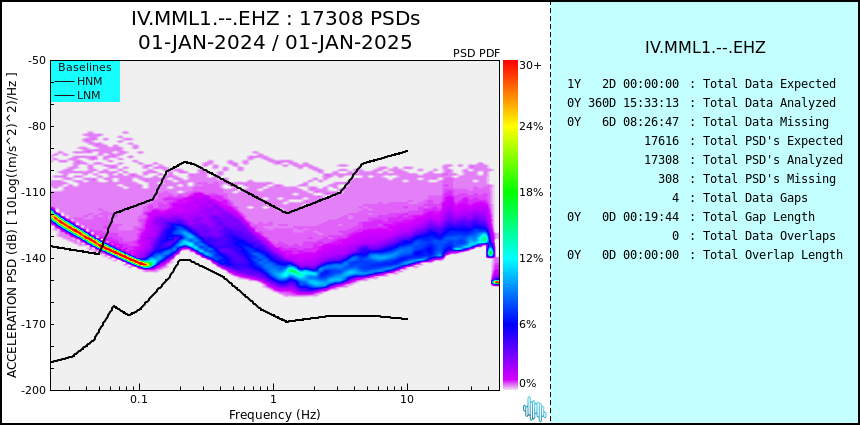

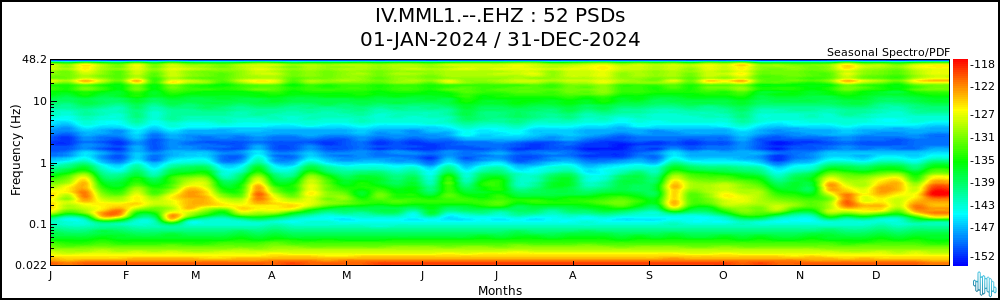

Z EH Img Img 89

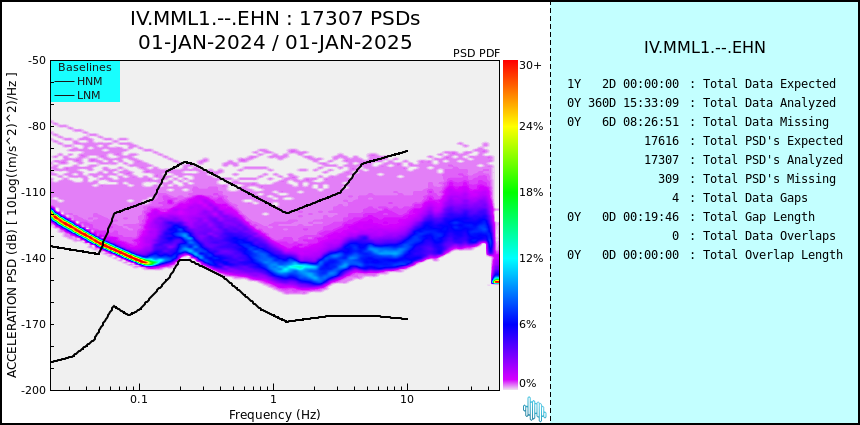

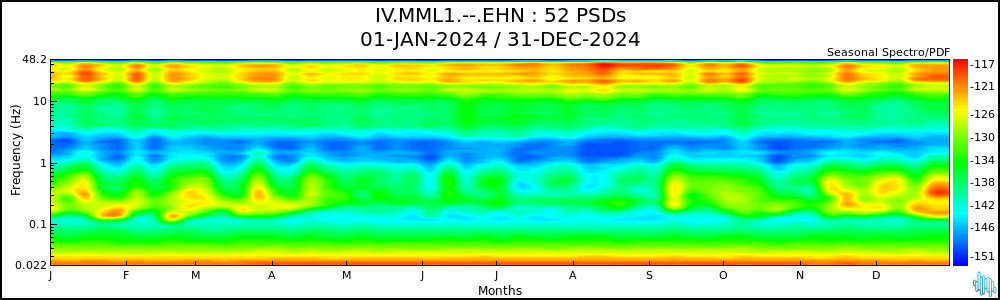

N EH Img Img 89

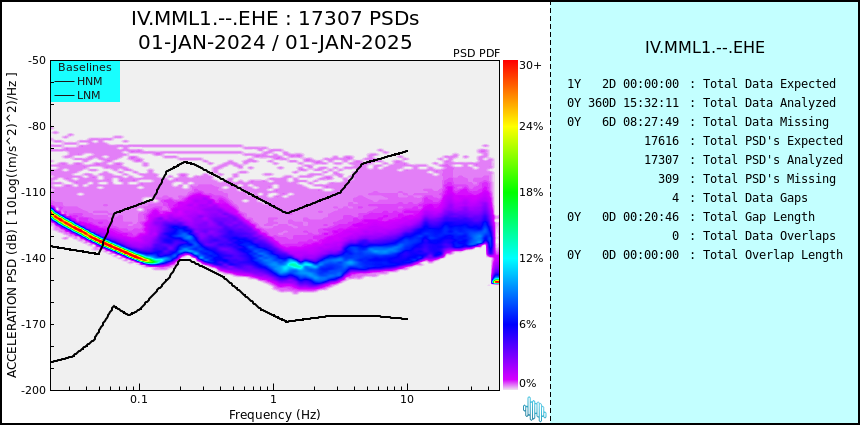

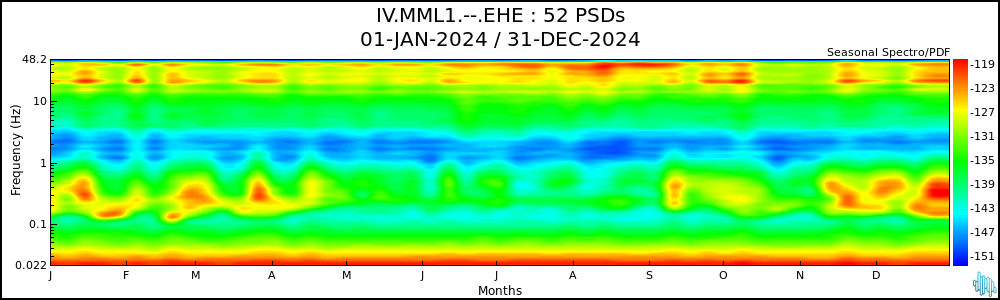

E EH Img Img 89

Geology

Stratigraphy
No Data Available
Geological Review
No Data Available
Morphological classification
No Data Available
Lithological Classification
No Data Available
Geological Classification
No Data Available
Fault Classification
No Data Available
Landslide Classification
No Data Available
Cross Section
Cartography Geological
Cross Section 		Latitude 1 [°] Longitude 1 [°] Latitude 2 [°] Longitude 2 [°] Spatial Ref Sys
Foglio NOCERA UMBRA - Carta Geologica d’Italia 1:50,000 Img 43.1474 12.94542 43.14599 12.94995 EPSG - 4326

Seismology

HVEQ
No Data Available
HVNoise
No Data Available
SSREQ
No Data Available
Signal Polarization
No Data Available

Geophysics

Subsoil Model
Id Type Investigation Pref. Latitude [°] Longitude [°] Elevation [m] Figure Monography
66 VELOCITY_PROFILE SA SA 43.14677 12.94686 511 Img Img

Site classification

Topography Class
Topography Class Type Topography Class Value Topography Class Preferred Topography Class Note Seismic Code Type Bibliography Last Update
DEM T1 Yes Slope: 3.72°, Vs30: 529 m/s NTC18 C. Mascandola, L. Luzi, C. Felicetta and F. Pacor, A GIS procedure for the topographic classification of Italy, according to the seismic code provisions, Soil Dynamics and Earthquake Engineering, (2021)
2025-11-27 20:38:01
Site Class
